01 CAPS

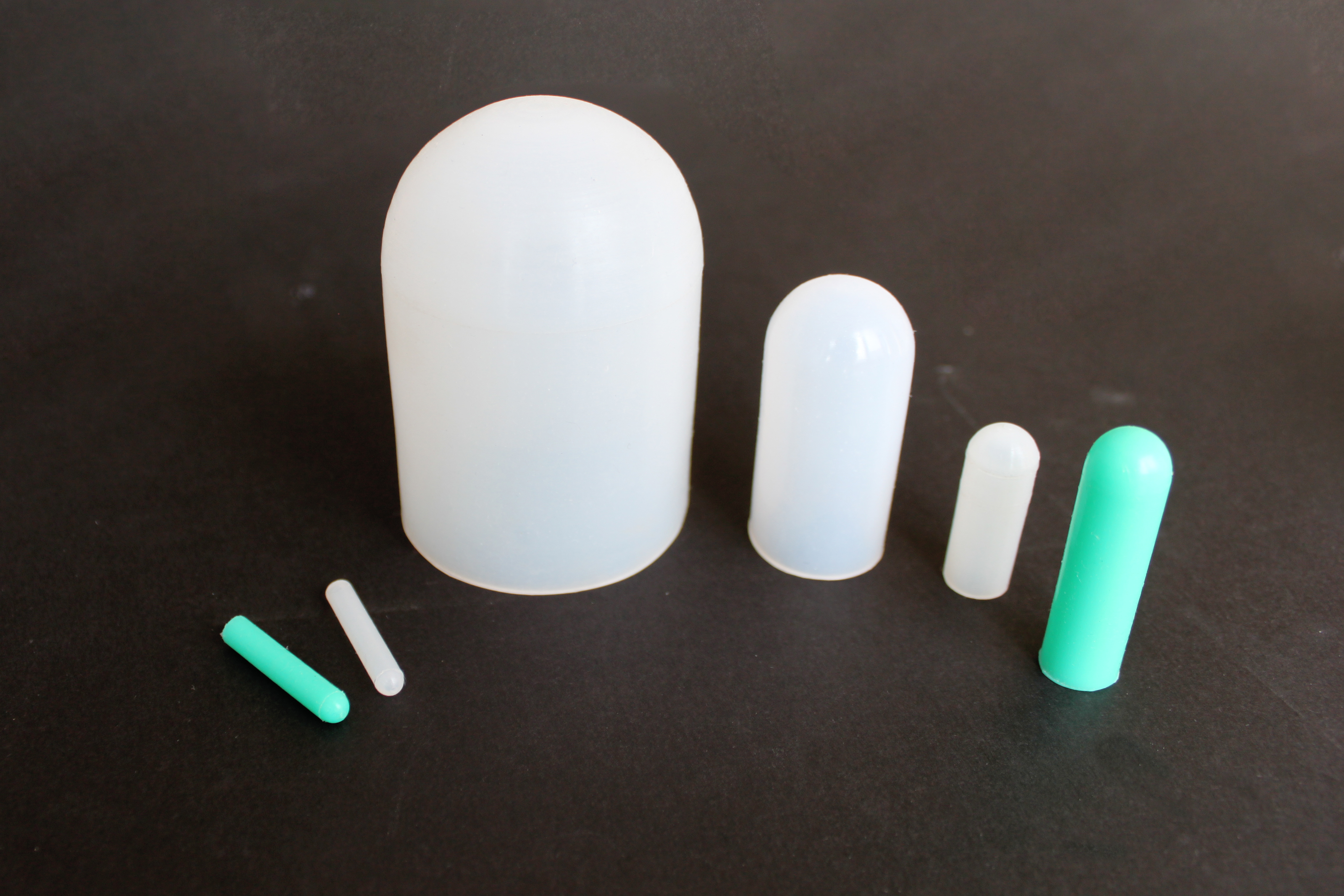

Caps 315°C
Recommended for Powder Coating, E-Coating, Plating and Anodising.
Our caps mask studs, tube ends, and slotted holes.
Colour coding increases visibility and eases the job of sorting plugs after use.
Custom designs available, small batch quantities if required.
See also washer caps and tubing/ sleeves.
Lower temperature caps available in PVC and Neoprene rubber, reusable.
The caps are flexible so they can fit over a number of different diameters.
Manufactured from silicone to give a long working life.
REQUEST MORE INFO
TECHNICAL TABLE
| Part # | Fits thread metric | Dimensions A mm | Dimensions B mm | Dimensions C mm | Qty per bag |
|---|---|---|---|---|---|
| MSC0037-0500 | 0.94 | 2.54 | 12.70 | 1000 | |
| MSC0062-1000 | 1.58 | 4.75 | 25.40 | 1000 | |
| MSC0070-1000 | M2 | 1.78 | 4.32 | 25.40 | 1000 |
| MSC0093-0750 | 2.36 | 4.95 | 19.05 | 1000 | |
| MSC0093-0500 | 2.36 | 4.95 | 12.70 | 1000 | |
| MSC0093-1000 | 2.36 | 4.95 | 25.40 | 1000 | |
| MSC0100-1000 | M3 | 2.54 | 5.08 | 25.40 | 1000 |
| MSC0100-0500 | M3 | 2.54 | 5.08 | 12.70 | 1000 |
| MSC0109-0750 | 2.77 | 5.46 | 19.05 | 1000 | |
| MSC0109-0500 | 2.77 | 5.46 | 12.70 | 1000 | |
| MSC0109-1000 | 2.77 | 5.46 | 25.40 | 1000 | |
| MSC0125-1000 | 3.18 | 6.35 | 25.40 | 1000 | |
| MSC0125-0500 | 3.18 | 6.35 | 12.70 | 1000 | |
| MSC0140-1000 | 3.56 | 6.73 | 25.40 | 1000 | |
| MSC0140-0500 | 3.56 | 6.73 | 12.70 | 1000 | |
| MSC0148-1000 | M4 | 3.76 | 6.10 | 25.40 | 1000 |
| MSC0148-0500 | M4 | 3.76 | 6.10 | 12.70 | 1000 |
| MSC0148-0750 | M4 | 3.76 | 6.10 | 19.05 | 1000 |
| MSC0156-1000 | 3.96 | 7.11 | 25.40 | 1000 | |
| MSC0156-0500 | 3.96 | 7.11 | 12.70 | 1000 | |
| MSC0156-1250 | 3.96 | 7.11 | 31.75 | 1000 | |
| MSC0164-1000 | 4.17 | 7.42 | 25.40 | 1000 | |
| MSC0172-1000 | 4.38 | 7.62 | 25.40 | 1000 | |
| MSC0172-0500 | 4.38 | 7.62 | 12.70 | 1000 | |
| MSC0172-1500 | 4.38 | 7.62 | 38.10 | 1000 | |
| MSC0180-1000 | M5 | 4.57 | 7.11 | 25.40 | 1000 |
| MSC0187-1000 | 4.75 | 8.00 | 25.40 | 1000 | |
| MSC0187-0500 | 4.75 | 8.00 | 12.70 | 1000 | |
| MSC0187-0750 | 4.75 | 8.00 | 19.05 | 1000 | |
| MSC0218-1000 | 5.54 | 8.59 | 25.40 | 500 | |
| MSC0223-1500 | M6 | 5.66 | 8.76 | 38.10 | 500 |
| MSC0223-0500 | M6 | 5.66 | 8.76 | 12.70 | 500 |
| MSC0223-1000 | M6 | 5.66 | 8.76 | 25.40 | 500 |
| MSC0234-1000 | 5.94 | 9.14 | 25.40 | 500 | |
| MSC0234-0500 | 5.94 | 9.14 | 12.70 | 500 | |
| MSC0234-1500 | 5.94 | 9.14 | 38.10 | 500 | |
| MSC0250-1000 | 6.35 | 9.65 | 25.40 | 500 | |
| MSC0250-0500 | 6.35 | 9.65 | 12.70 | 500 | |
| MSC0281-1000 | 7.14 | 10.16 | 25.40 | 500 | |
| MSC0281-0500 | 7.14 | 10.16 | 12.70 | 500 | |
| MSC0295-1500 | M8 | 7.49 | 10.67 | 38.10 | 500 |
| MSC0295-0500 | M8 | 7.49 | 10.67 | 12.70 | 500 |
| MSC0295-1000 | M8 | 7.49 | 10.67 | 25.40 | 500 |
| MSC0312-1000 | 7.92 | 11.18 | 25.40 | 500 | |
| MSC0312-1500 | 7.92 | 11.18 | 38.10 | 500 | |
| MSC0340-1000 | 8.64 | 11.18 | 25.40 | 500 | |
| MSC0355-1500 | 9.02 | 12.32 | 38.10 | 500 | |
| MSC0375-1000 | M10 | 9.53 | 12.83 | 25.40 | 500 |
| MSC0375-0500 | M10 | 9.53 | 12.83 | 12.70 | 500 |
| MSC0375-0750 | M10 | 9.53 | 12.83 | 19.05 | 500 |
| MSC0375-1500 | 9.53 | 12.83 | 38.10 | 500 | |
| MSC0406-1000 | 10.31 | 13.49 | 25.40 | 500 | |
| MSC0437-1000 | 11.10 | 14.35 | 25.40 | 500 | |
| MSC0456-1000 | M12 | 11.58 | 14.76 | 38.10 | 500 |
| MSC0456-1000 | M12 | 11.58 | 14.76 | 25.40 | 500 |
| MSC0468-1000 | 11.89 | 15.06 | 25.40 | 500 | |
| MSC0480-1500 | 12.19 | 15.37 | 38.10 | 500 | |
| MSC0480-1000 | 12.19 | 15.37 | 25.40 | 500 | |
| MSC0500-1500 | 12.70 | 15.88 | 38.10 | 500 | |
| MSC0535-1500 | M14 | 13.59 | 16.13 | 38.10 | 250 |
| MSC0535-3000 | M14 | 13.59 | 16.13 | 76.20 | 250 |
| MSC0562-1500 | 14.28 | 17.42 | 38.10 | 250 | |
| MSC0600-1500 | M16 | 15.24 | 18.39 | 38.10 | 250 |
| MSC0625-1500 | 15.88 | 19.05 | 38.10 | 250 | |
| MSC0625-2500 | 15.88 | 19.05 | 63.50 | 250 | |
| MSC0687-1500 | 17.45 | 20.63 | 38.10 | 250 | |
| MSC0730-1500 | M19 | 18.54 | 21.72 | 38.10 | 250 |
| MSC0750-1500 | M20 | 19.05 | 22.23 | 38.10 | 250 |
| MSC0750-3500 | 19.05 | 22.23 | 88.90 | 250 | |
| MSC0780-1500 | 19.81 | 22.99 | 38.10 | 250 | |
| MSC0812-1500 | 20.63 | 23.80 | 38.10 | 250 | |
| MSC0875-1500 | 22.23 | 25.40 | 38.10 | 250 | |
| MSC0937-1500 | 23.80 | 26.98 | 38.10 | 250 | |
| MSC0970-1500 | M25 | 24.64 | 27.81 | 38.10 | 250 |
| MSC1000-1500 | 25.40 | 28.58 | 38.10 | 250 | |
| MSC1000-2000 | 25.40 | 28.58 | 50.80 | 250 | |
| MSC1062-2000 | 26.98 | 30.15 | 50.80 | 100 | |
| MSC1125-1500 | 28.58 | 31.75 | 38.10 | 100 | |
| MSC1187-1500 | 30.15 | 33.33 | 38.10 | 100 | |
| MSC1250-1500 | 31.75 | 35.10 | 38.10 | 100 | |
| MSC1350-1750 | 34.29 | 37.69 | 44.45 | 100 | |
| MSC1390-2000 | 35.31 | 38.51 | 50.80 | 100 | |
| MSC1500-1000 | 38.10 | 41.28 | 25.40 | 100 | |
| MSC1500-1750 | 38.10 | 41.28 | 44.45 | 100 | |
| MSC1750-2000 | 44.45 | 47.63 | 50.80 | 100 | |
| MSC1875-2000 | 47.63 | 50.80 | 50.80 | 100 | |
| MSC2000-2000 | 50.80 | 53.98 | 50.80 | 100 |
