MA-PRO CATALOG / SPECIAL PLUGS / STEP PLUGS 315°C
03 SPECIAL PLUGS
Step plugs 315°C
Recommended for Powder Coating, E-Coating, Anodising, and Plating upto 315°C.
Provides a clean area around diameter of hole for earthing purposes.
Colour coded.
Eliminates 2-step masking.
Plugs threaded or non-threaded holes.
Reusable.
Handle aides insertion and removal.
REQUEST MORE INFO

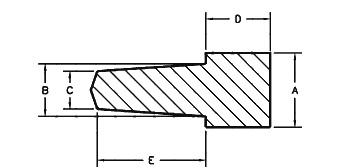

TECHNICAL TABLE
| Part number | Dimensions mm A | Dimensions mm B | Dimensions mm C | Dimensions mm D | Dimensions mm E | Qty per bag |
|---|---|---|---|---|---|---|
| MSP-M3 | 7.01 | 3.00 | 2.36 | 7.01 | 13.01 | 500 |
| MSP-M4 | 8.00 | 5.00 | 2.85 | 8.00 | 14.00 | 500 |
| MSP-M5 | 8.99 | 5.99 | 3.94 | 8.99 | 16.03 | 500 |
| MSP-M6 | 10.16 | 6.43 | 4.78 | 10.16 | 17.63 | 250 |
| MSP-M8 | 12.42 | 8.23 | 5.95 | 9.75 | 17.32 | 250 |
