03 SPECIAL PLUGS
Thread masks 315°C
Recommended for powder Coating, E-coating, plating and anodising.
Designed to mask the first thread of a threaded hole.
Sizes for metric and UNC threads.
Hollow design to improve fit.
LS (Long Series) have longer handles for hard to reach areas.
Reusable.
Ideal for shallow blind holes and weld nuts.
REQUEST MORE INFO
TECHNICAL TABLE

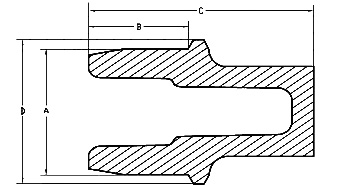

| Part Number | Dimensions mm A | Dimensions mm B | Dimensions C in mm | Dimensione mm D | Qty per bag |
|---|---|---|---|---|---|
| MUTM-M3*0.5LS | 3.50 | 5.33 | 20.83 | 3.05 | 1000 |
| MUTM-M4*0.7LS | 4.09 | 5.84 | 21.84 | 4.04 | 1000 |
| MUTM-M5*0.8LS | 5.26 | 5.59 | 20.83 | 5.06 | 500 |
| MUTM-M6*1 | 5.28 | 5.00 | 14.00 | 6.30 | 500 |
| MUTM-M6*1LS | 5.28 | 7.49 | 24.49 | 6.30 | 500 |
| MUTM-1/4-20 | 5.54 | 5.08 | 11.43 | 6.60 | 500 |
| MUTM-1/4-20LS | 5.54 | 7.09 | 23.42 | 6.60 | 500 |
| MUTM-1/4-36LS | 5.89 | 6.86 | 23.42 | 6.60 | 500 |
| MUTM-5/16-18 | 7.06 | 5.08 | 12.70 | 8.13 | 500 |
| MUTM-5/16-18LS | 7.06 | 7.09 | 22.71 | 8.13 | 500 |
| MUTM-M8*1.25 | 7.19 | 5.00 | 12.24 | 8.41 | 500 |
| MUTM-M8*1.25LS | 7.19 | 7.49 | 22.76 | 8.41 | 500 |
| MUTM-5/16-40LS | 7.52 | 7.09 | 22.71 | 8.13 | 250 |
| MUTM-3/8-16 | 8.53 | 6.35 | 15.24 | 9.78 | 500 |
| MUTM-3/8-16LS | 8.53 | 8.36 | 25.25 | 9.78 | 250 |
| MUTM-3/8-36LS | 9.07 | 8.36 | 25.25 | 9.78 | 250 |
| MUTM-M10*1.5 | 9.09 | 7.01 | 16.00 | 10.39 | 250 |
| MUTM-M10*1.5LS | 9.09 | 7.01 | 24.00 | 10.39 | 250 |
| MUTM-7/16-14 | 9.96 | 8.89 | 19.05 | 11.18 | 250 |
| MUTM-M12*1.75 | 10.82 | 8.79 | 20.12 | 12.42 | 250 |
| MUTM-1/2-13 | 11.46 | 8.89 | 19.05 | 12.95 | 250 |
| MUTM-M16*2 | 14.81 | 11.00 | 23.01 | 16.61 | 100 |
| MUTM-M20*2.5 | 18.89 | 13.01 | 28.50 | 20.60 | 100 |
| MUTM-M24*2LS | 22.76 | 16.00 | 37.85 | 24.05 | 50 |
