03 SPECIAL PLUGS
Washer pull plugs 315°C
Recommended for Powder Coating, E-Coating, Plating and Anodising.
Ideal for threaded or non-threaded holes.
Dual purpose:
- Pull through to mask hole and earthing area
- Push in to mask hole and countersink area
REQUEST MORE INFO

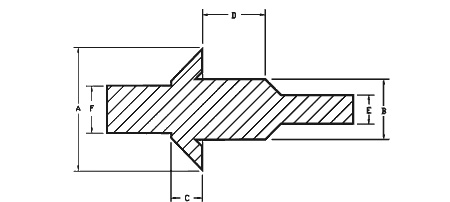

| Part number | Thread size | Dimensions mm A | Dimensions mm B | Dimensions mm C | Dimensions mm D | Dimensions mm E | Dimensions mm F | Qty per bag |
|---|---|---|---|---|---|---|---|---|
| MUWPP-M3 | M3 | 10.01 | 2.67 | 2.72 | 9.91 | 1.52 | 2.29 | 250 |
| MUWPP-M4 | M4 | 10.01 | 3.56 | 2.72 | 9.91 | 2.03 | 3.05 | 250 |
| MUWPP-M4LS | M4 | 10.01 | 3.56 | 2.72 | 22.23 | 2.03 | 4.83 | 250 |
| MUWPP-M5 | M5 | 10.01 | 4.47 | 2.72 | 9.91 | 2.54 | 3.81 | 250 |
| MUWPP-M6 | M6 | 15.01 | 5.36 | 4.19 | 9.91 | 3.05 | 4.57 | 250 |
| MUWPP-M6LS | M6 | 15.01 | 5.36 | 4.19 | 38.10 | 3.05 | 6.35 | 250 |
| MUWPP-M8 | M8 | 15.01 | 7.19 | 4.19 | 9.91 | 4.09 | 6.10 | 250 |
| MUWPP-M10 | M10 | 19.99 | 9.53 | 5.33 | 9.91 | 5.44 | 8.13 | 100 |
| MUWPP-M12 | M12 | 19.99 | 10.87 | 5.33 | 9.91 | 6.20 | 9.14 | 100 |
| MUWPP-500 | 10-24 | 12.70 | 4.24 | 2.72 | 9.91 | 2.41 | 3.56 | 250 |
| MUWPP500LS | 10-24 | 12.70 | 4.24 | 2.72 | 28.58 | 2.41 | 5.72 | 250 |
| MUWPP-562 | 12-24 | 14.28 | 4.90 | 2.72 | 9.91 | 2.79 | 4.06 | 250 |
| MUWPP562LS | 12-24 | 14.28 | 4.90 | 2.72 | 38.10 | 2.79 | 5.72 | 250 |
| MUWPP-625 | 1/4-20 | 15.88 | 5.72 | 2.72 | 9.91 | 3.25 | 4.83 | 250 |
| MUWPP-688 | 5/16-18 | 17.48 | 7.21 | 4.19 | 9.91 | 4.12 | 6.10 | 250 |
| MUWPP-812 | 3/8-16 | 20.62 | 8.69 | 4.19 | 9.91 | 4.95 | 7.37 | 100 |
| MUWPP-922 | 7/16-14 | 23.42 | 10.16 | 5.33 | 9.91 | 5.79 | 8.64 | 100 |
| MUWPP-1060 | 1/2-13 | 26.92 | 11.66 | 5.33 | 9.91 | 6.66 | 9.91 | 100 |
