MA-PRO CATALOG / SPECIAL PLUGS / EPDM FLANGELESS PLUGS 177°C
03 SPECIAL PLUGS
EPDM flangeless plugs 177°C
Recommended for Plating, Anodising and Spray-Painting.
Tapered design and hollow core allow multiple applications.
Protect plain or threaded holes without masking the surrounding area.
For Powder Coating, E-Coating, Plating and Anodising upto 315°C see Flangless Plugs.
REQUEST MORE INFO

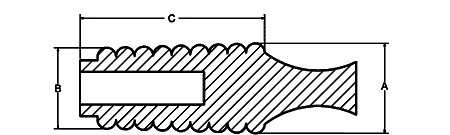

TECHNICAL TABLE
| Part number | Dimensions mm A | Dimensions mm B | Dimensions mm C | Qty per bag |
|---|---|---|---|---|
| MUFP00250E | 5.84 | 3.99 | 25.40 | 250 |
| MUFP00312E | 8.00 | 5.61 | 25.40 | 250 |
| MUFP00406E | 9.65 | 8.00 | 25.40 | 250 |
| MUFP00468E | 11.94 | 9.65 | 25.40 | 250 |
| MUFP00562E | 14.61 | 12.19 | 25.40 | 250 |
| MUFP00625E | 16.00 | 13.61 | 25.40 | 250 |
| MUFP00718E | 18.01 | 16.00 | 25.40 | 250 |
| MUFP00787E | 19.99 | 18.01 | 25.40 | 100 |
| MUFP00866E | 22.00 | 19.99 | 25.40 | 100 |
| MUFP00945E | 24.00 | 22.00 | 25.40 | 100 |
| MUFP01024E | 26.01 | 24.00 | 25.40 | 100 |
| MUFP01102E | 27.99 | 26.00 | 25.40 | 100 |
